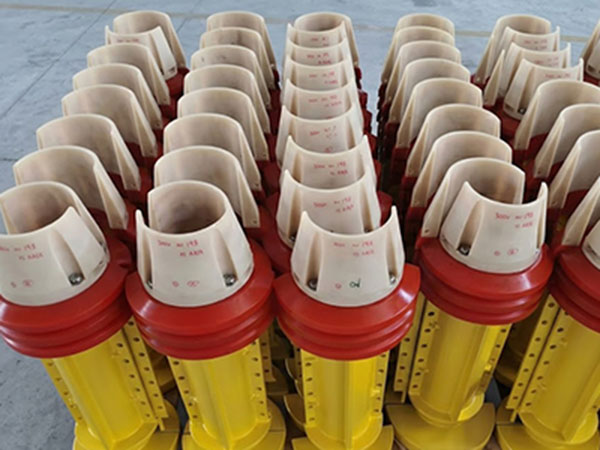

The J-tube seal andJ-tube centralizer are both components used in the oil and gas industry, particularly in subsea applications involving pipelines and risers. They serve different functions and are critical for ensuring the integrity and efficiency of underwater installations.

J-tube seal

The J-tube seal is designed primarily to prevent the ingress of water, contaminants, or other fluids into the J-tube structure, which is a vertical or inclined pipe that houses risers or cables. The seal acts as a barrier between the external environment and the internal space of the j-tube. This is crucial because any unwanted substances entering the j-tube can compromise the equipment enclosed within, leading to corrosion, operational failures, or safety hazards.

Typically made from durable polyurethane materials that can withstand harsh marine conditions, J-tube seals are engineered to maintain their integrity under pressure and temperature fluctuations. They May utilize various sealing technologies, such as o-rings or gaskets, to ensure a tight fit. Proper installation of a j-tube seal is vital to its effectiveness; a poor seal can lead to leakage, negating its protective purpose.

J-tube centralizer

In contrast, the offshore j-tube centraliser is a structural component that keeps the riser or cable centrally positioned within the J-tube. This positioning is important for several reasons: It ensures even distribution of loads on the riser, minimizes wear and tear caused by contact with the j-tube walls, and helps maintain proper alignment during installation and operation.

Riser J-tube centralisers are typically designed in various shapes and sizes to accommodate different dimensions of risers and J-tubes. They are constructed from lightweight yet sturdy polyurethane materials to facilitate easy handling while providing sufficient strength to handle dynamic forces encountered during drilling or production activities. Centralizers often feature cushioning elements that absorb shock and reduce vibration, further protecting the riser and associated components.

In summary, the primary difference between a J-tube seal and a J-tube centralizer lies in their functions: The J-tube seal focuses on preventing fluid ingress and maintaining environmental integrity, while the umbilical j-tube centraliser aims to keep the riser or cable properly aligned and centered within the tube. Both components play essential roles in enhancing the reliability and safety of subsea operations, contributing to efficient energy extraction processes. J-tube seal & centralizer is usually used with bend restrictor. Understanding these differences is crucial for engineers and technicians involved in the design and maintenance of subsea infrastructure.
